DL7APV Pulsare detection

B2111+46

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

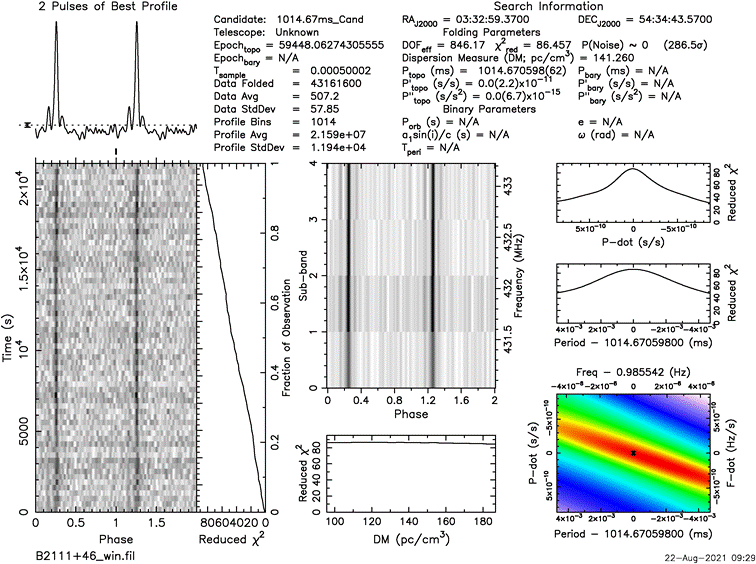

After conversion: B2111+46_win.fil

Recorded File

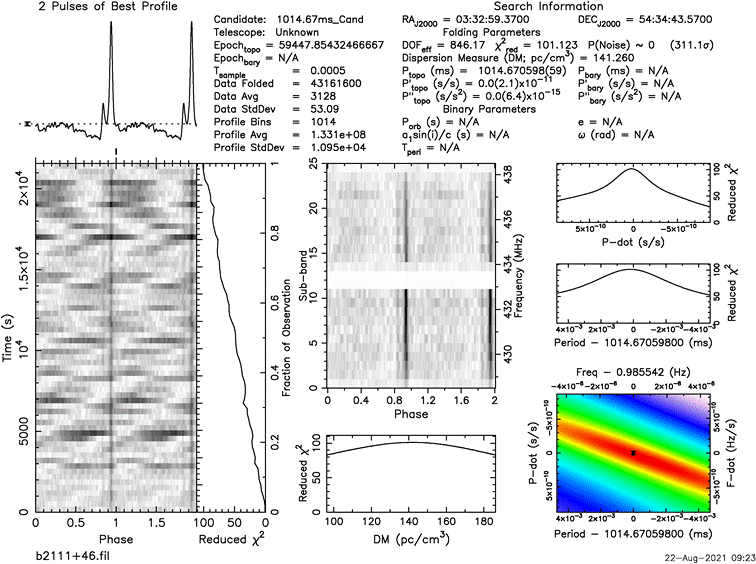

After conversion: b2111+46.fil

Record date: 2021 aug 21 Start 20:30 UTC 6h

Local antenna direction from Az/EL 96°/70° to 290°/49°

RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000

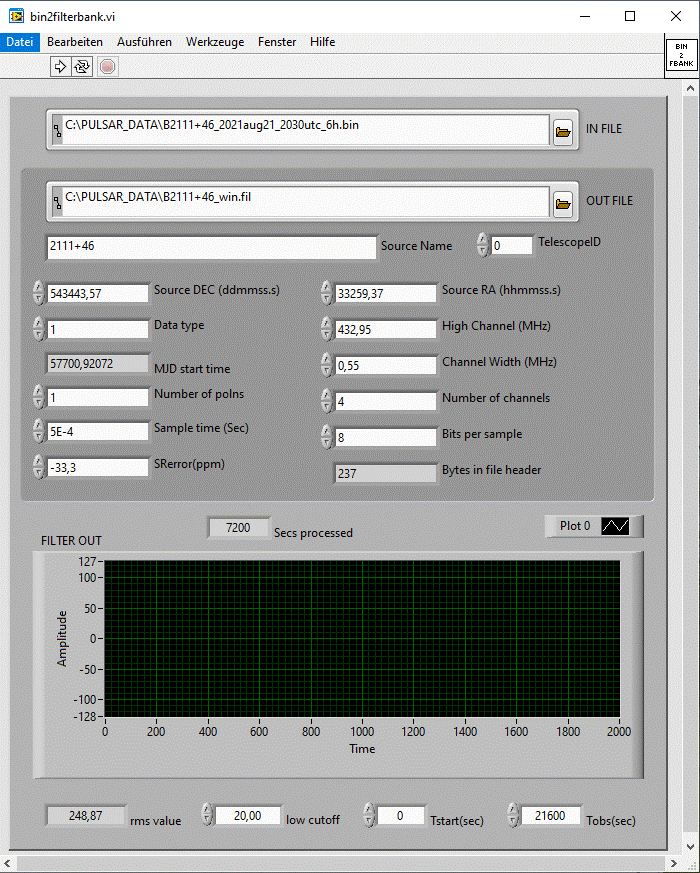

Bin2fil data:

Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

Airspy settings:

rec_gui:

ACQ time (s)	21600
Sample rate	10MSPS (airspy)
SR time series	2KSPS
Num chan	25
Frequency (MHz)	433.5
RF gain (dB)	30
IF Gain (dB)	7
BB gain	0
DIG gain	2
Bin2fil settings:
Conv start	0
Length	21600
Ampli	2
Filt H	18
Filt L	0.05
Filter typ	Bessel
Source name
DEC
RA
Center frequency (MHz)	433.5
SR	10MSPS (airspy)
SR error (ppm)	0
SR time series	2KSPS
Channels	25

Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

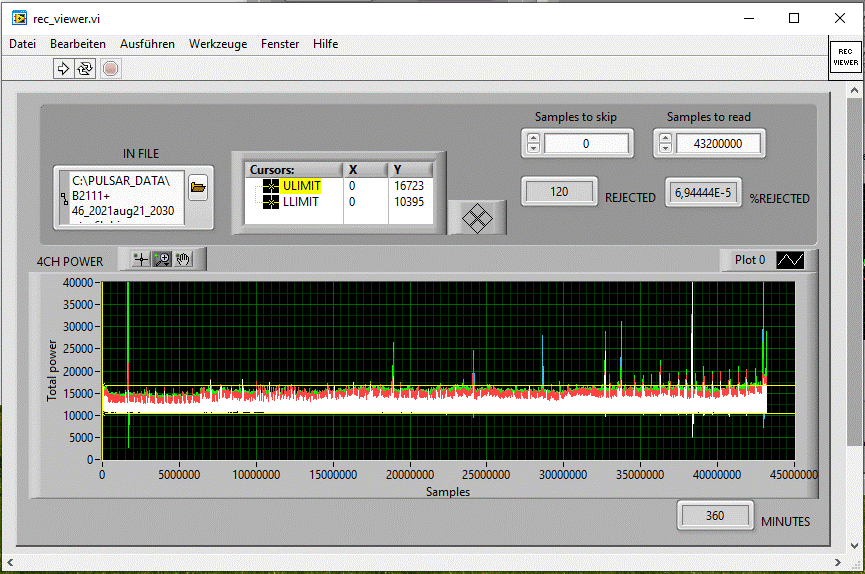

Quiet, with typical electrical fence from neighbor

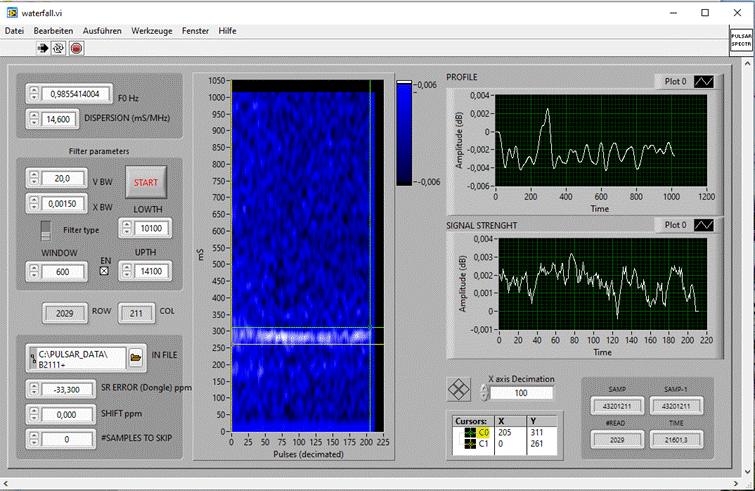

As in most cases the DM curve is much better as with the 2MHz recording

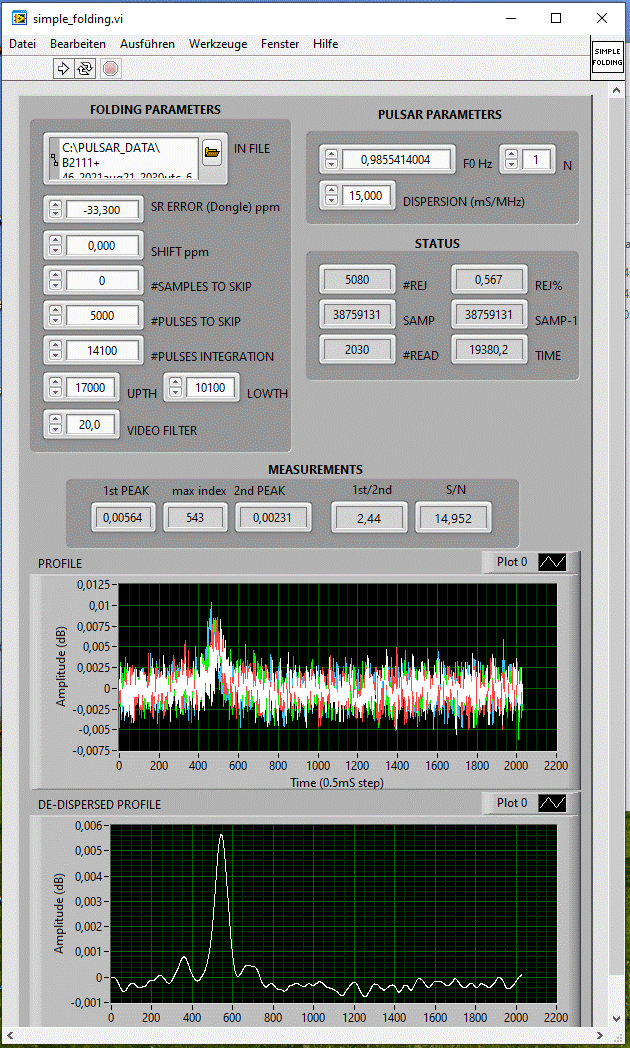

Less than the value of folding before of 14,9

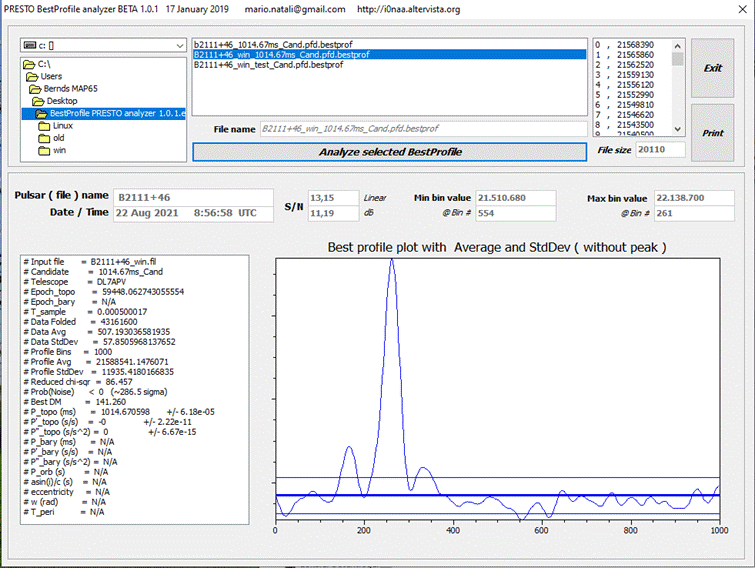

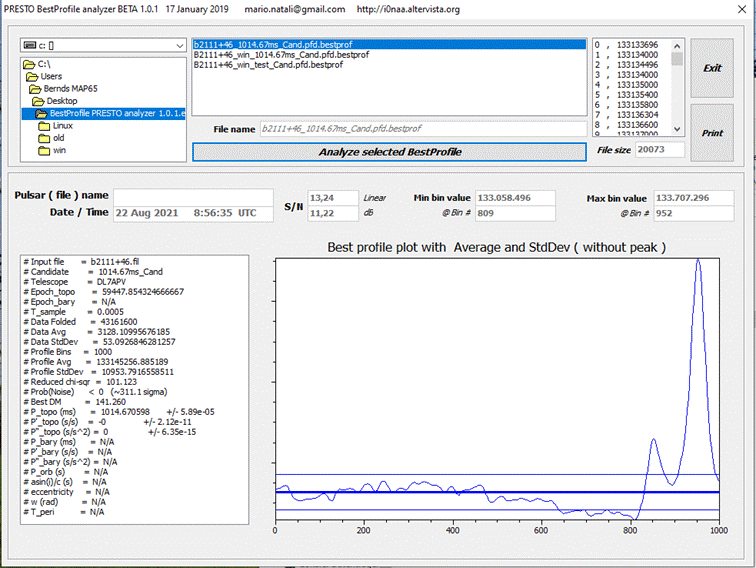

S/N is only a bit better compared to the 2MHz

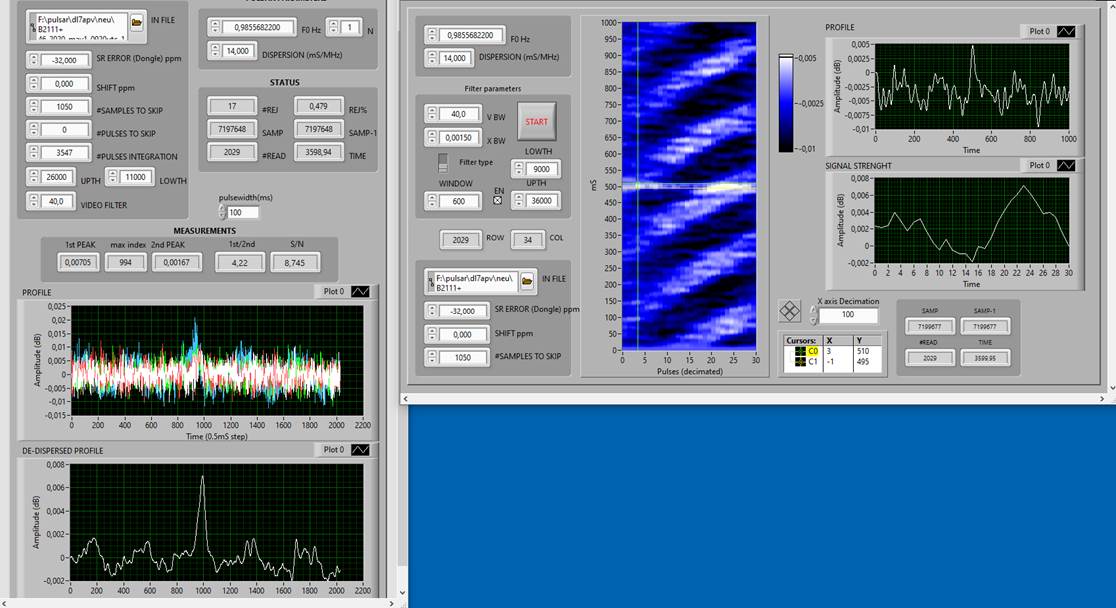

Older recordings with 2MHz

and 1h observation time

And with heavy impulses form electrical fence
