DL7APV Pulsare detection

B0355+54

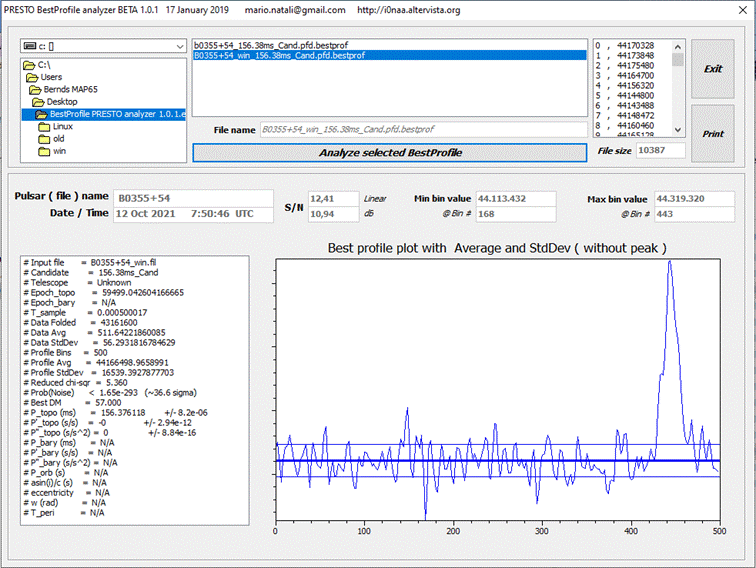

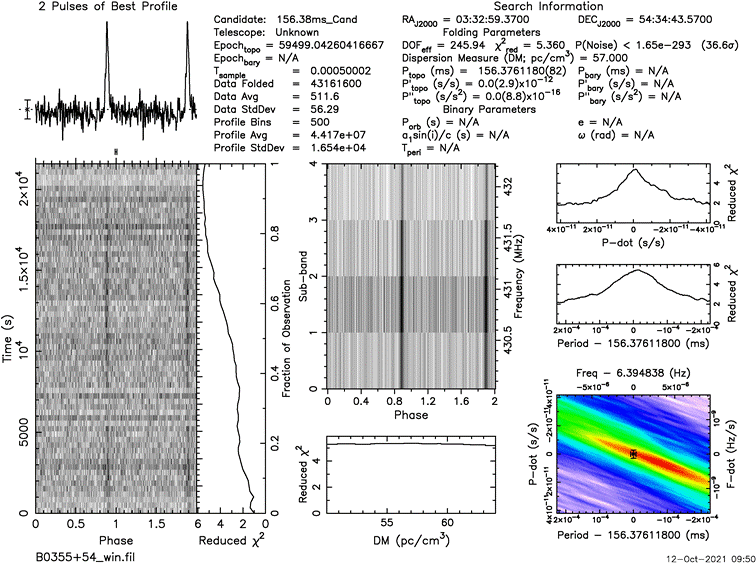

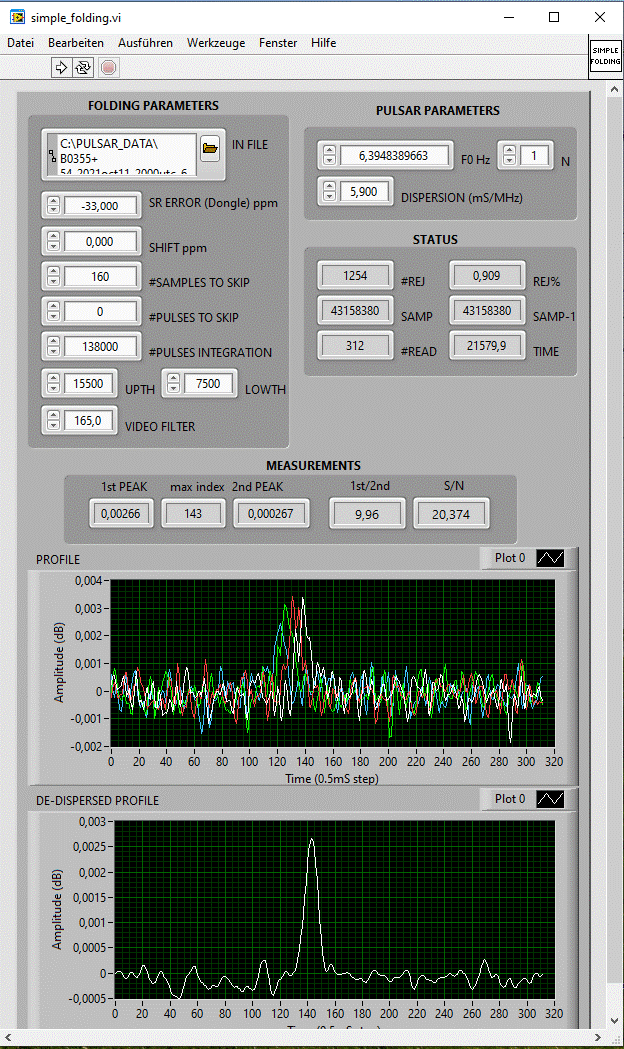

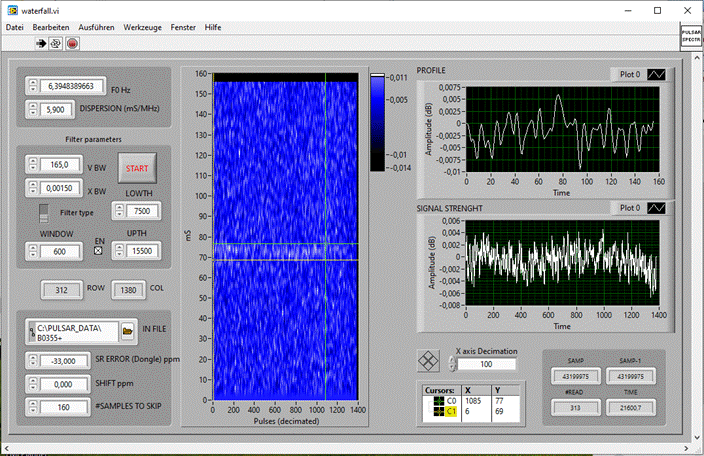

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

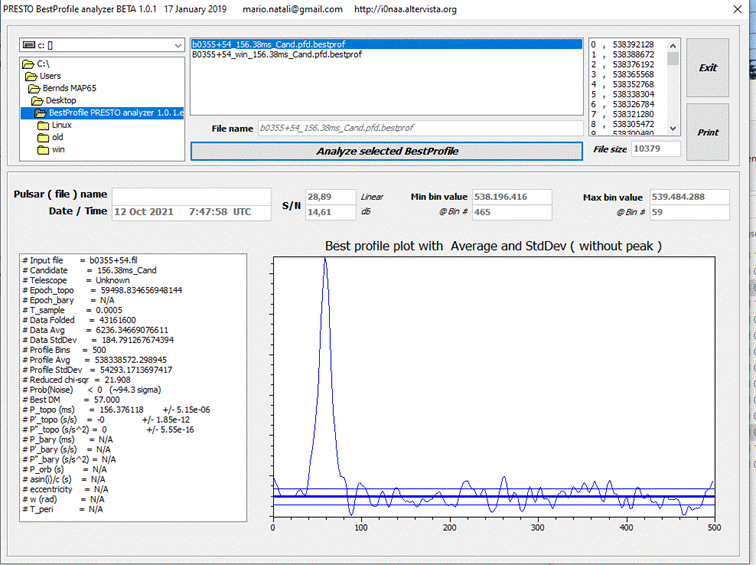

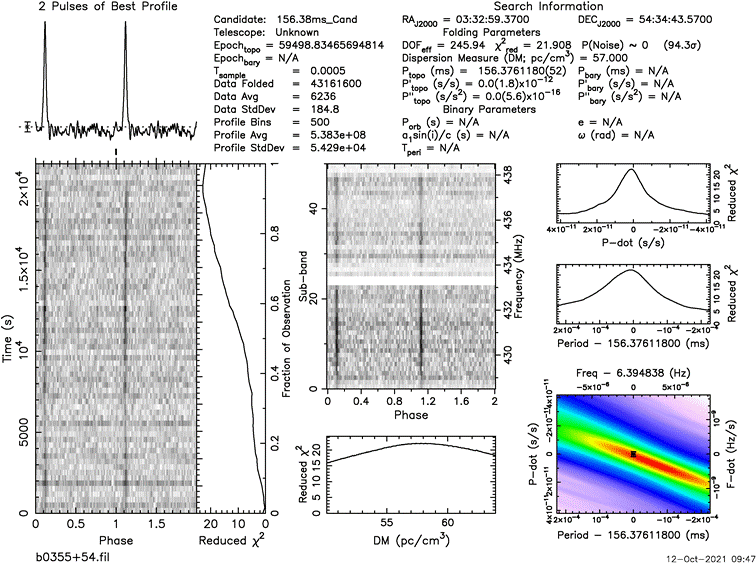

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

After conversion: B0355+54_win.fil

Recorded File

After conversion: b0355+54.fil

Record date: 2021 oct 11 Start 20:00 UTC 6h

Local antenna direction from Az/EL 50°/40° to 70°/85°

RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000

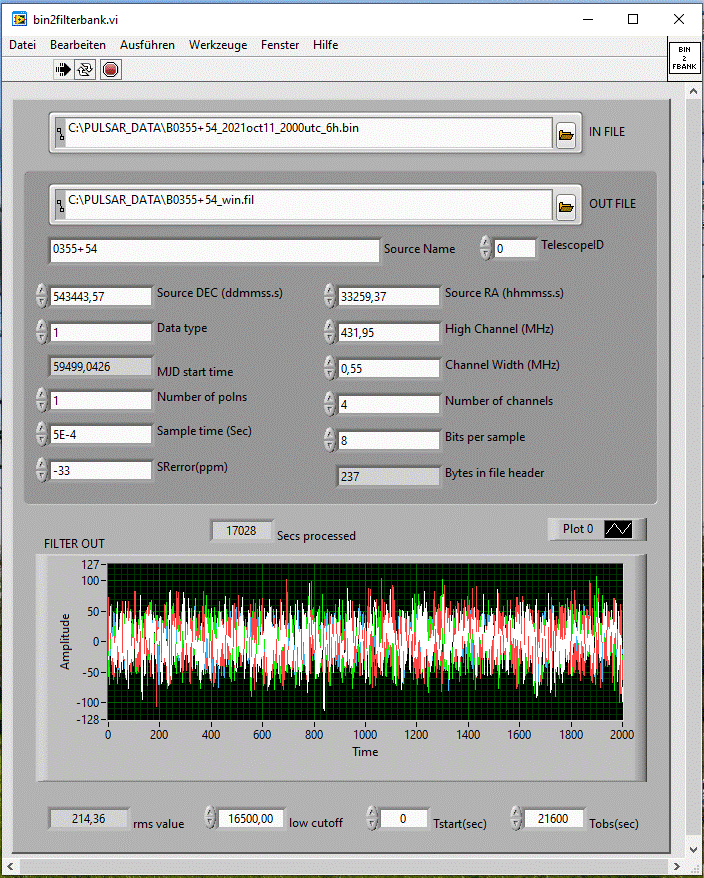

Bin2fil data:

Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

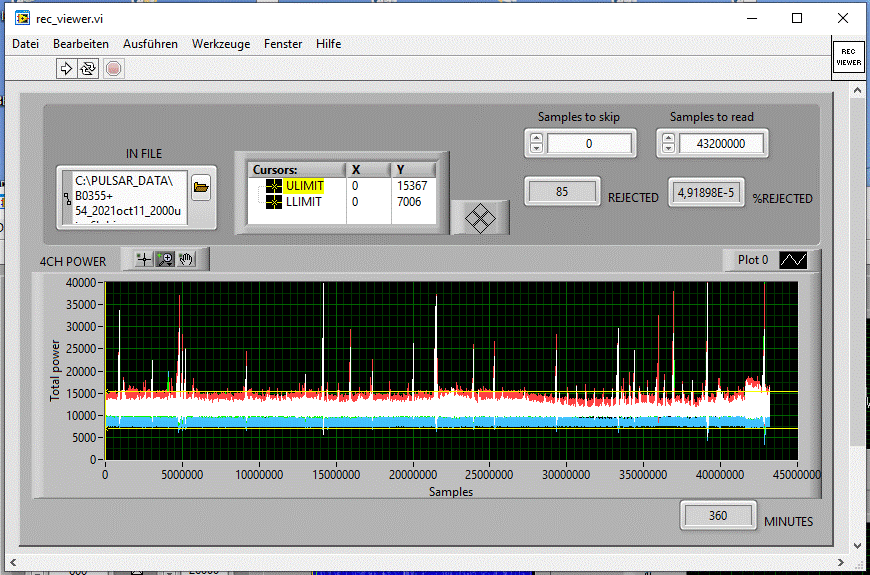

Airspy settings:

rec_gui:

ACQ time (s)	21600
Sample rate	10MSPS (airspy)
SR time series	2KSPS
Num chan	50
Frequency (MHz)	433.5
RF gain (dB)	26
IF Gain (dB)	9
BB gain	0
DIG gain	2

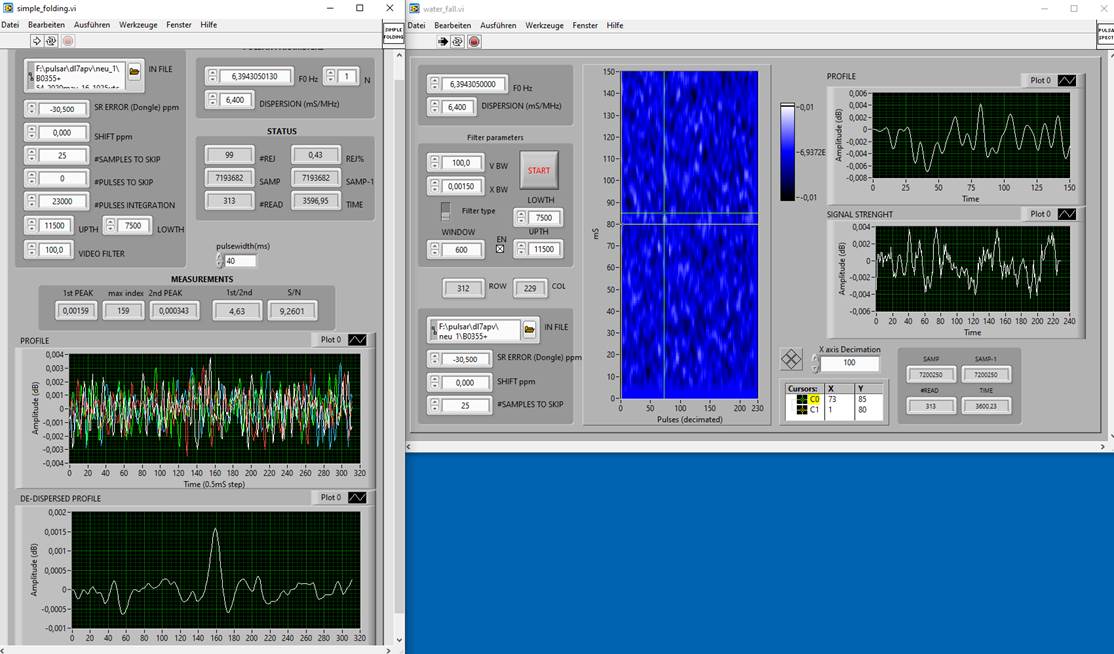

Bin2fil settings:
Conv start	0
Length	21600
Ampli	2
Filt H	164
Filt L	0.01
Filter typ	Bessel
Source name
DEC
RA
Center frequency (MHz)	433.5
SR	10MSPS (airspy)
SR error (ppm)	0
SR time series	2KSPS
Channels	50

Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

The typical electrical fence from neighbor

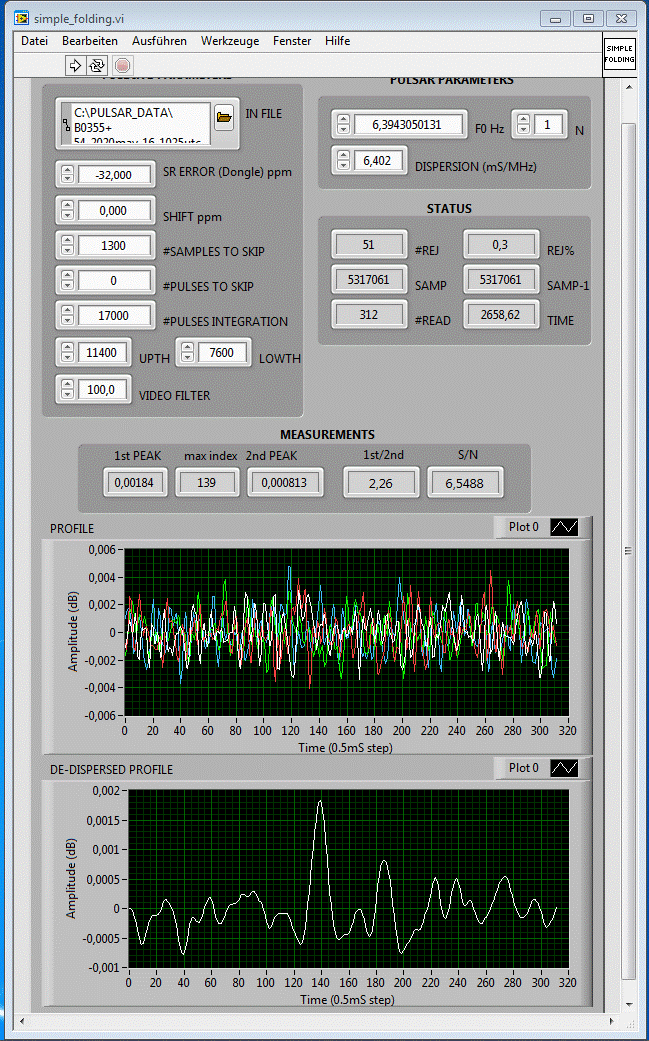

Older recordings with 2MHz

and 1h observation time

back

Last update okt 2021
